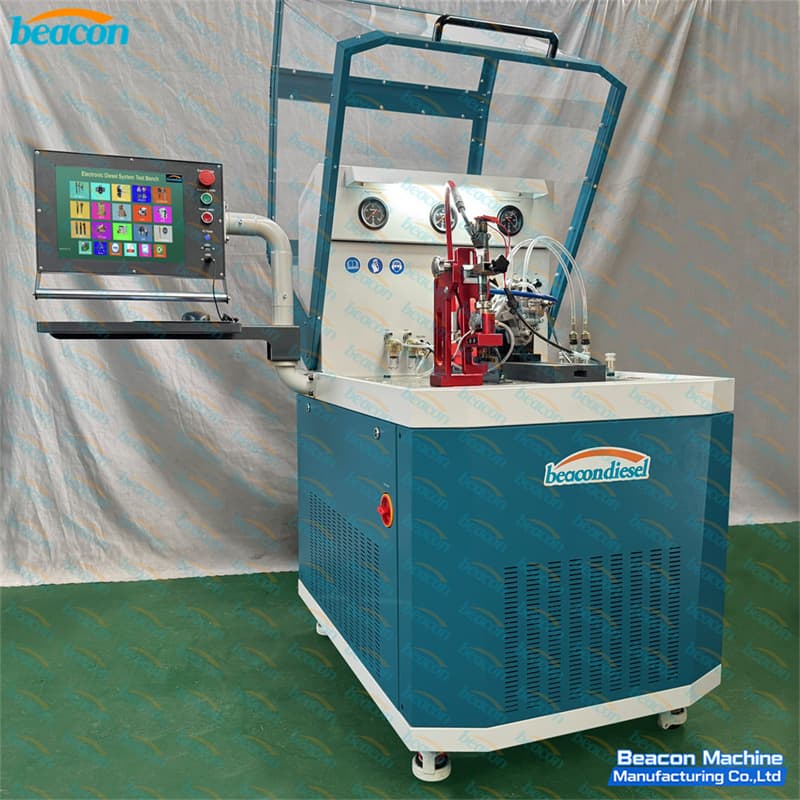

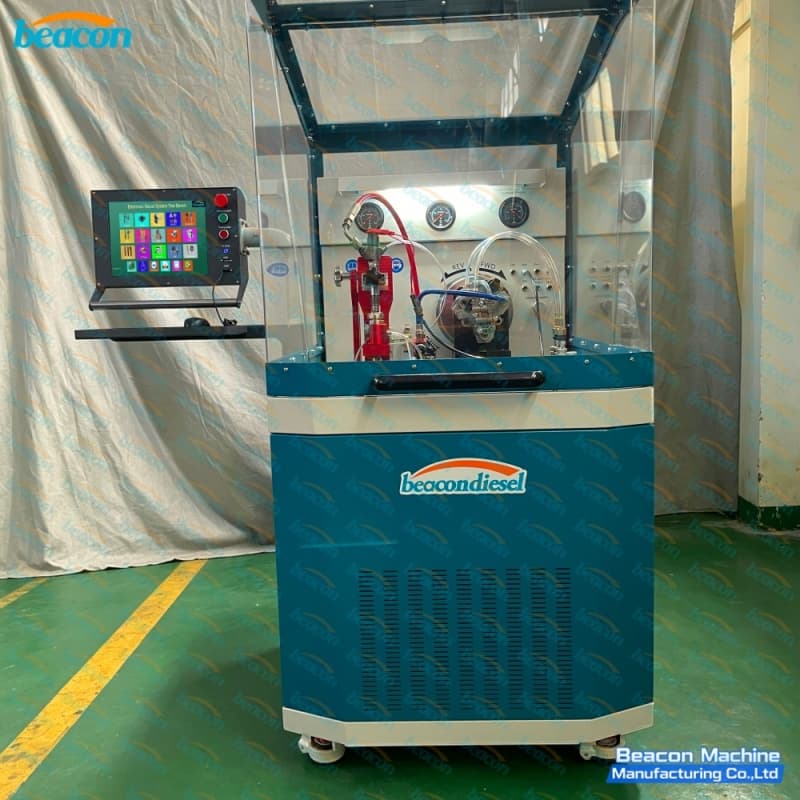

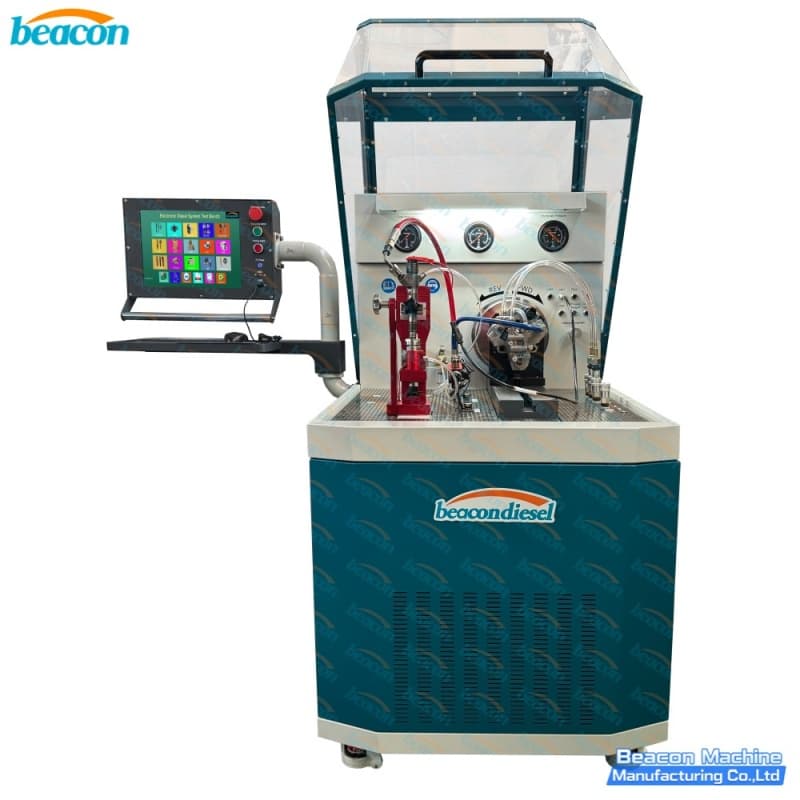

BC810 BEACON MACHINE Automatic Common Rail Injector and Pump Test Bench | Diesel Fuel Injection Pump Test Bench

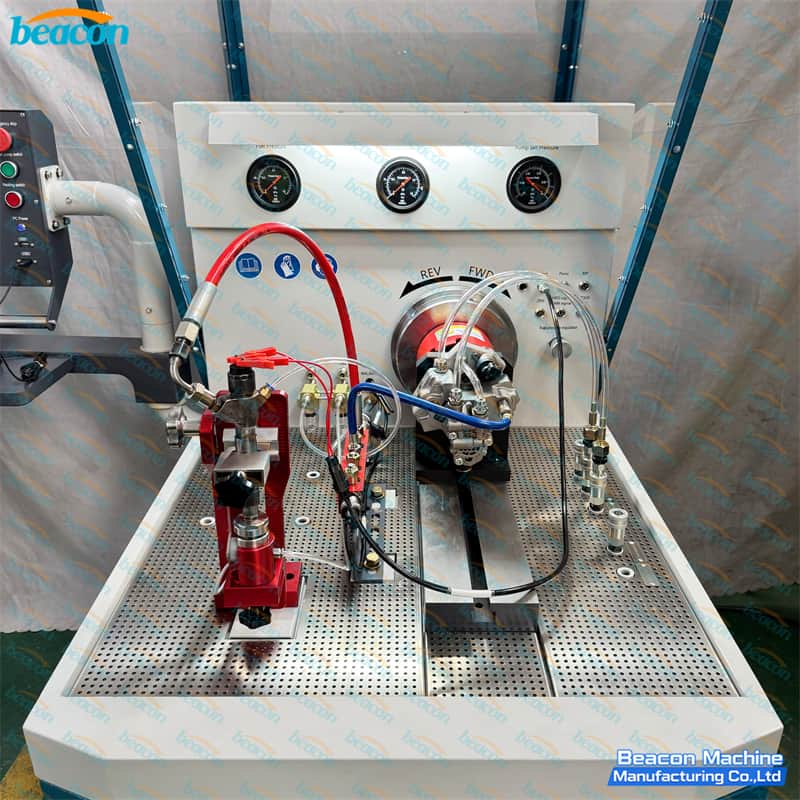

The BC810 represents an advanced diagnostic platform engineered to evaluate high-pressure fuel delivery performance across modern diesel engines. Utilizing this automatic common rail injector and pump test bench, technicians can simulate precise electronic control unit signals to calibrate solenoid injectors, piezo elements, and Denso i-ART components alongside an integrated common rail injector and pump test bench setup. The unit supports comprehensive analysis for Bosch CP1/CP2/CP3, Delphi, Denso HP0/HP3/HP4, and Caterpillar 320D pump assemblies under full load, idle, and pre-injection states.

Engineered with an industrial-grade frequency inverter and high-precision flow sensors, this diesel fuel injection pump test bench ensures superior repeatability and precise volumetric measurement. Its heavy-duty steel structure, reinforced transparent safety shield, and intelligent temperature conditioning system prevent thermal drift during continuous testing cycles. The pre-loaded global database with automated test plans simplifies workflow, making it an essential diagnostic solution for high-volume diesel rebuilding centers and specialized maintenance facilities.

Technical & Service Advantages of BC810 BEACON MACHINE

• Comprehensive Pump and Injector Testing: The BC810 automatic common rail injector and pump test bench seamlessly performs combined testing for Bosch, Denso, Delphi, Siemens VDO, and CAT high-pressure pumps as well as solenoid and piezo injectors on a single platform.

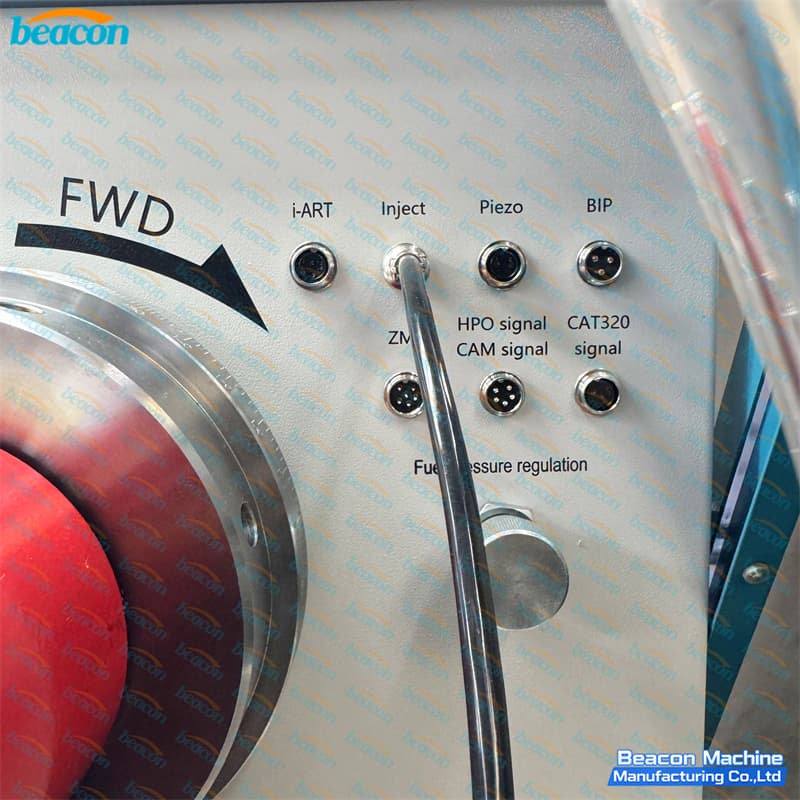

• Full Signal Coverage: Equipped with dedicated hardware interfaces supporting complex electronic control signals, including Denso i-ART 6-pin injectors, BIP (Beginning of Injection Period) response time detection, and Caterpillar 320D actuation.

• High-Precision Digital Flow Measurement: Integrates dual high-accuracy flow meters with temperature compensation, providing precise delivery volume readings (accuracy within ±0.5%) across full-load, pre-injection, and emission test phases.

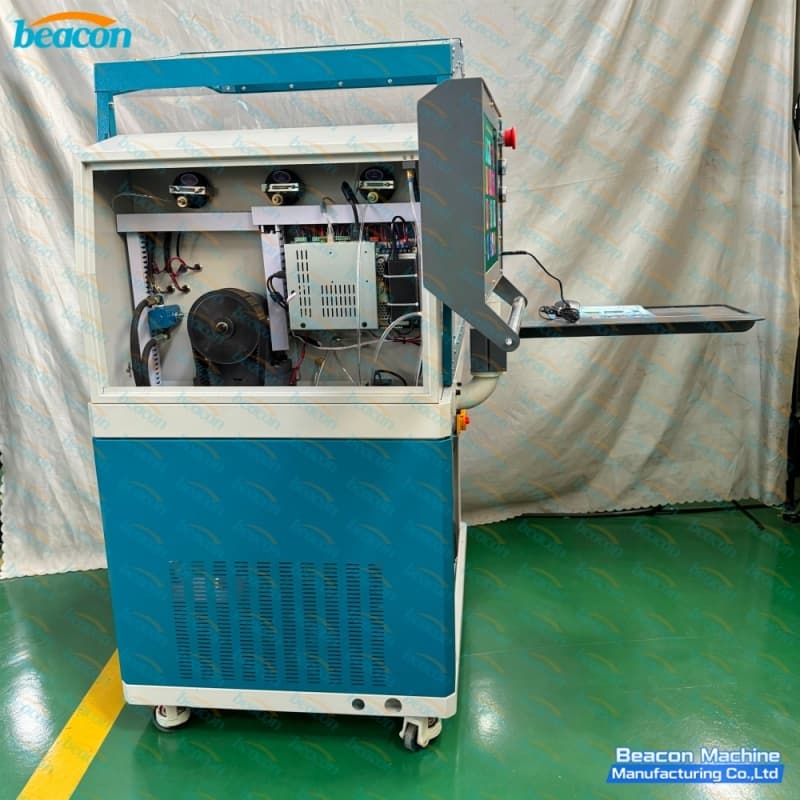

• Industrial-Grade Drive & Thermal Control: Powered by a heavy-duty inverter-driven motor and an automated heating/forced cooling loop, guaranteeing rock-solid rail pressure stability up to 2500 bar without thermal variance.

• Robust Safety Architecture: Features an all-steel reinforced enclosure, impact-resistant transparent polycarbonate shield, and instant emergency stop interlocks to maximize technician safety during high-pressure cycles.

• Global Cloud Test Plan Database: BEACON MACHINE provides lifetime remote software support with thousands of pre-calibrated OEM test plans and free database updates via internet connection.

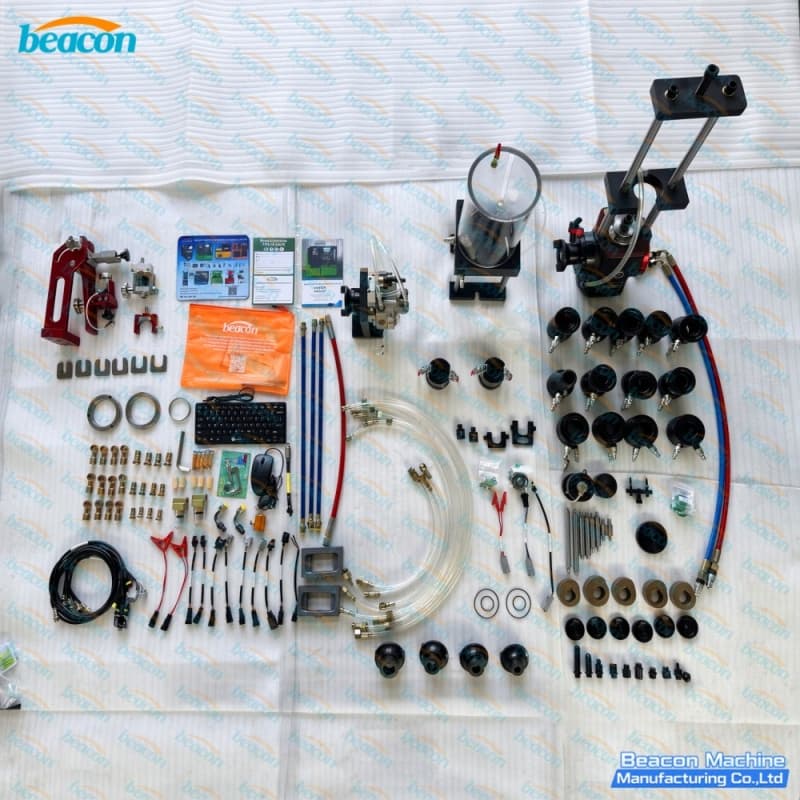

• Comprehensive Turnkey Package: Shipped with a complete array of multi-brand mechanical adapters, pump coupling flanges, high-pressure pipes, and harness cables, backed by a 12-month manufacturer warranty.
